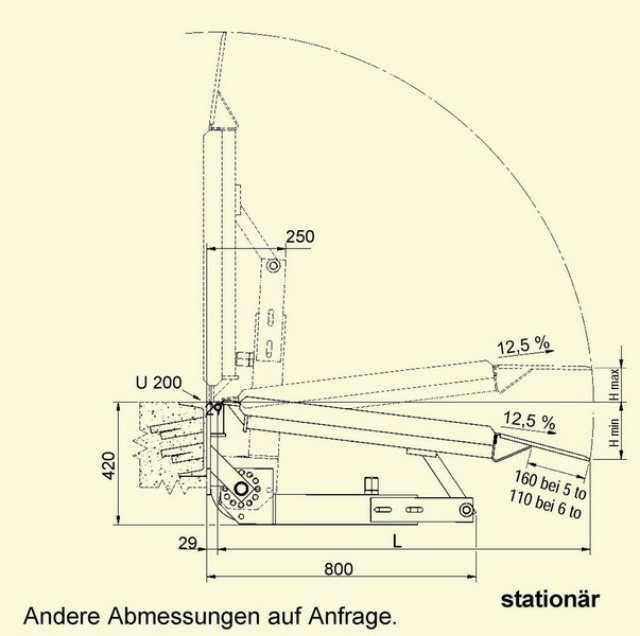

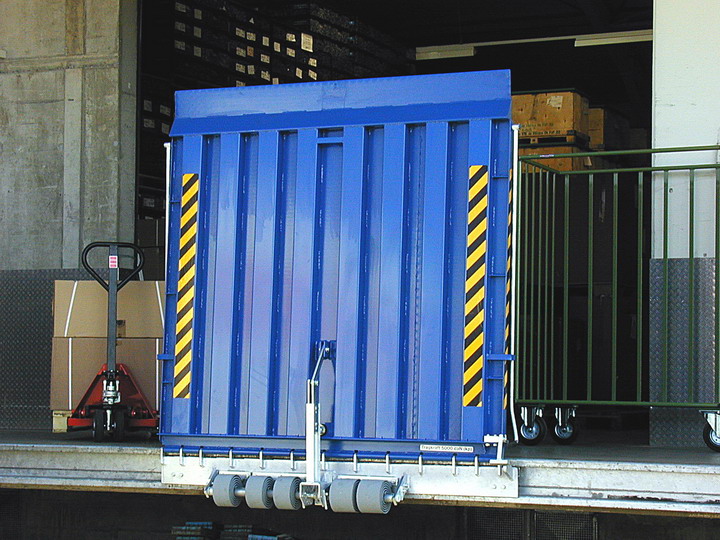

Federmechanische Überfahrbrücke, Stahl lackiert - RAL 5010, Tragrkaft 5000 kg
(jeweils staionär oder verschiebbar erhältlich)
| Typ | Bestell. Nr. | Typ | Bestell. Nr. | Länge L | Breite B | Höhendif. H (mm) | Trag-kraft | Gew. Station. | Gew. Verschieb. | |
| station. | versch.. | (mm) | (mm) | min | max | kg/Stk | kg/Stk | kg/Stk | ||
| FBSS | 302.20.000 | FBSV 01 | 303.21.000 | 1250 | 1500 | -160 | 110 | 5000 | 230 | 250 |
| FBSS | 302.20.001 | FBSV 04 | 303.21.001 | 1500 | 1500 | -190 | 140 | 5000 | 270 | 290 |
| FBSS | 302.20.002 | FBSV 05 | 303.21.002 | 1500 | 1750 | -190 | 140 | 5000 | 300 | 320 |
| FBSS | 302.20.003 | FBSV 06 | 303.21.003 | 1500 | 2000 | -190 | 140 | 5000 | 330 | 350 |
| FBSS | 302.20.004 | FBSV 07 | 303.21.004 | 1750 | 1500 | -220 | 175 | 5000 | 290 | 310 |
| FBSS | 302.20.005 | FBSV 08 | 303.21.005 | 1750 | 1750 | -220 | 175 | 5000 | 20 | 340 |
| FBSS | 302.20.006 | FBSV 09 | 303.21.006 | 1750 | 2000 | -220 | 175 | 5000 | 350 | 370 |
| FBSS | 302.20.007 | FBSV 10 | 303.21.007 | 2000 | 1500 | -250 | 205 | 5000 | 320 | 340 |
| FBSS | 302.20.008 | FBSV 11 | 303.21.008 | 2000 | 1750 | -250 | 205 | 5000 | 360 | 380 |
| FBSS | 302.20.009 | FBSV 12 | 303.21.009 | 2000 | 2000 | -250 | 205 | 5000 | 400 | 420 |

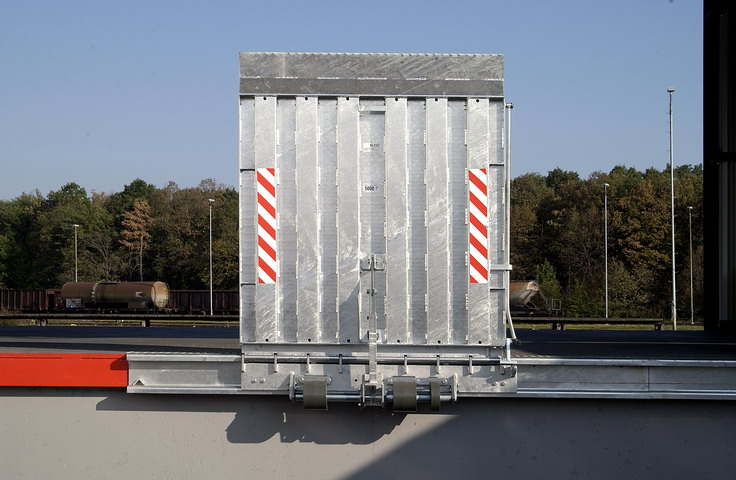

Federmechanische Überfahrbrücke, Stahl verzinkt, Tragkraft 5000 kg
(jeweils staionär oder verschiebbar erhältlich)
| Typ | Bestell. Nr. | Typ | Bestell. Nr. | Länge L | Breite B | Höhendif. H (mm) | Trag-kraft | Gew. Station. | Gew. Verschieb. | |
| station. | versch.. | (mm) | (mm) | min | max | kg/Stk | kg/Stk | kg/Stk | ||
| FBSS | 302.80.000 | FBSV 01 | 303.81.000 | 1250 | 1500 | -160 | 110 | 5000 | 230 | 250 |
| FBSS | 302.80.001 | FBSV 04 | 303.81.001 | 1500 | 1500 | -190 | 140 | 5000 | 270 | 290 |
| FBSS | 302.80.002 | FBSV 05 | 303.81.002 | 1500 | 1750 | -190 | 140 | 5000 | 300 | 320 |
| FBSS | 302.80.003 | FBSV 06 | 303.81.003 | 1500 | 2000 | -190 | 140 | 5000 | 330 | 350 |
| FBSS | 302.80.004 | FBSV 07 | 303.81.004 | 1750 | 1500 | -220 | 175 | 5000 | 290 | 310 |
| FBSS | 302.80.005 | FBSV 08 | 303.81.005 | 1750 | 1750 | -220 | 175 | 5000 | 20 | 340 |
| FBSS | 302.80.006 | FBSV 09 | 303.81.006 | 1750 | 2000 | -220 | 175 | 5000 | 350 | 370 |
| FBSS | 302.80.007 | FBSV 10 | 303.81.007 | 2000 | 1500 | -250 | 205 | 5000 | 320 | 340 |
| FBSS | 302.80.008 | FBSV 11 | 303.81.008 | 2000 | 1750 | -250 | 205 | 5000 | 360 | 380 |
| FBSS | 302.80.009 | FBSV 12 | 303.81.009 | 2000 | 2000 | -250 | 205 | 5000 | 400 | 420 |
Federmechanische Überfahrbrücke, Stahl lackiert - RAL 5010, Tragkraft 6000 kg
(jeweils staionär oder verschiebbar erhältlich)
| Typ | Bestell. Nr. | Typ | Bestell. Nr. | Länge L | Breite B | Höhendif. H (mm) | Trag-kraft | Gew. Station. | Gew. Verschieb. | |
| station. | versch.. | (mm) | (mm) | min | max | kg/Stk | kg/Stk | kg/Stk | ||
| FBSS | 302.50.000 | FBSV 01 | 303.51.000 | 1250 | 1500 | -160 | 110 | 6000 | 245 | 265 |
| FBSS | 302.50.001 | FBSV 04 | 303.51.001 | 1500 | 1500 | -190 | -140 | 6000 | 285 | 305 |
| FBSS | 302.50.002 | FBSV 05 | 303.51.002 | 1500 | 1750 | -190 | 140 | 6000 | 315 | 335 |
| FBSS | 302.50.003 | FBSV 06 | 303.51.003 | 1500 | 2000 | -190 | 140 | 6000 | 345 | 365 |
| FBSS | 302.50.004 | FBSV 07 | 303.51.004 | 1750 | 1500 | -220 | 175 | 6000 | 305 | 325 |
| FBSS | 302.50.005 | FBSV 08 | 303.51.005 | 1750 | 1750 | -220 | 175 | 6000 | 335 | 355 |
| FBSS | 302.50.006 | FBSV 09 | 303.51.006 | 1750 | 2000 | -220 | 175 | 6000 | 365 | 385 |
| FBSS | 302.50.007 | FBSV 10 | 303.51.007 | 2000 | 1500 | -250 | 205 | 6000 | 335 | 355 |
| FBSS | 302.50.008 | FBSV 11 | 303.51.008 | 2000 | 1750 | -250 | 205 | 6000 | 375 | 395 |
| FBSS | 302.50.009 | FBSV 12 | 303.51.009 | 2000 | 2000 | -250 | 205 | 6000 | 415 | 435 |
Federmechanische Überfahrbrücke, Stahl verzinkt, Tragkraft 6000 kg
(jeweils staionär oder verschiebbar erhältlich)
| Typ | Bestell. Nr. | Typ | Bestell. Nr. | Länge L | Breite B | Höhendif. H (mm) | Trag-kraft | Gew. Station. | Gew. Verschieb. | |
| station. | versch.. | (mm) | (mm) | min | max | kg/Stk | kg/Stk | kg/Stk | ||
| FBSS | 302.82.000 | FBSV 01 | 303.83.000 | 1250 | 1500 | -160 | 110 | 6000 | 245 | 265 |
| FBSS | 302.82.001 | FBSV 04 | 303.83.001 | 1500 | 1500 | -190 | 140 | 6000 | 285 | 305 |
| FBSS | 302.82.002 | FBSV 05 | 303.83.002 | 1500 | 1750 | -190 | 140 | 6000 | 315 | 335 |
| FBSS | 302.82.003 | FBSV 06 | 303.83.003 | 1500 | 2000 | -190 | 140 | 6000 | 345 | 365 |
| FBSS | 302.82.004 | FBSV 07 | 303.83.004 | 1750 | 1500 | -220 | 175 | 6000 | 305 | 325 |
| FBSS | 302.82.005 | FBSV 08 | 303.83.005 | 1750 | 1750 | -220 | 175 | 6000 | 335 | 355 |
| FBSS | 302.82.006 | FBSV 09 | 303.83.006 | 1750 | 2000 | -220 | 175 | 6000 | 365 | 385 |
| FBSS | 302.82.007 | FBSV 10 | 303.83.007 | 2000 | 1500 | -250 | 205 | 6000 | 335 | 355 |
| FBSS | 302.82.008 | FBSV 11 | 303.83.008 | 2000 | 1750 | -250 | 205 | 6000 | 375 | 395 |
| FBSS | 302.82.009 | FBSV 12 | 303.83.009 | 2000 | 2000 | -250 | 205 | 6000 | 415 | 435 |
